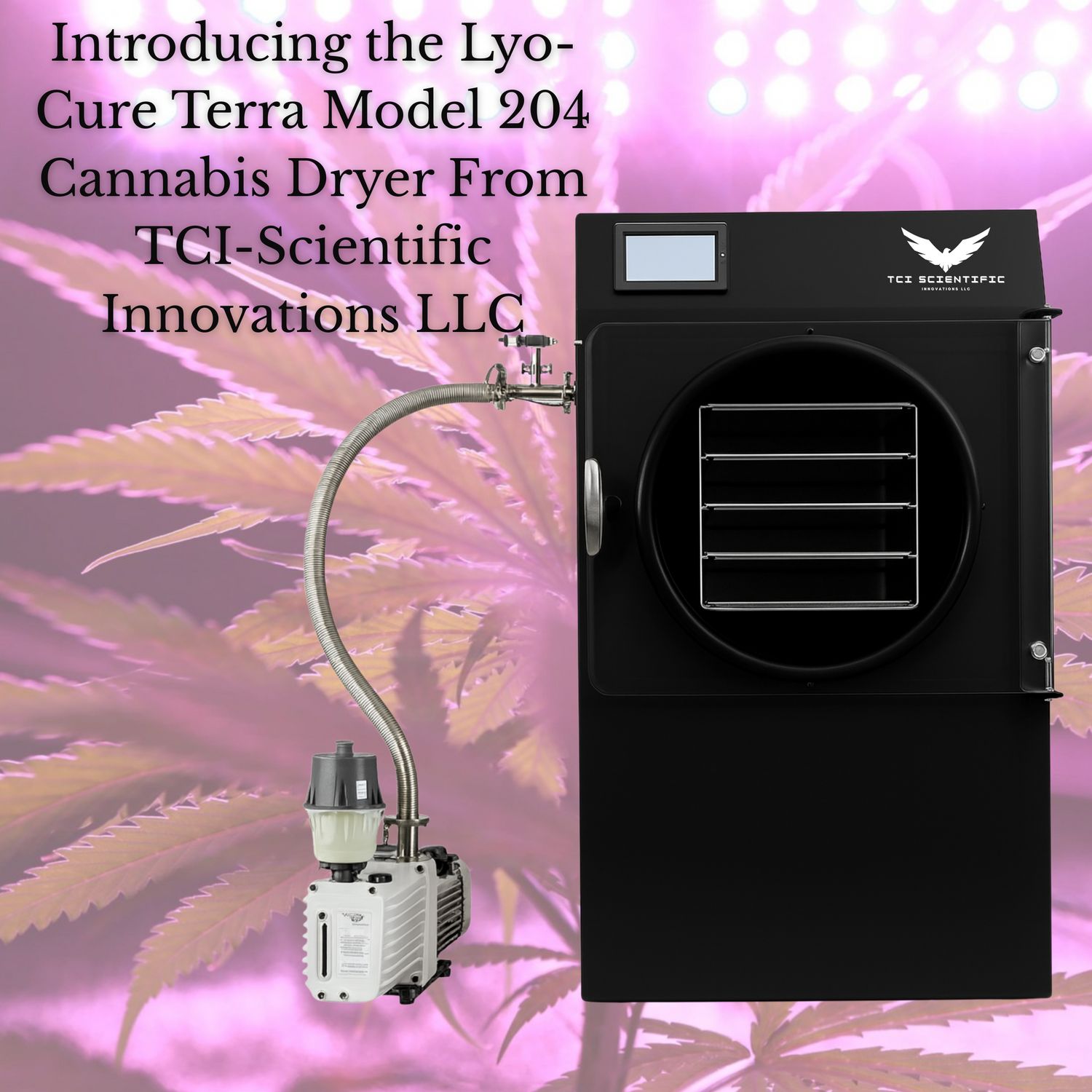

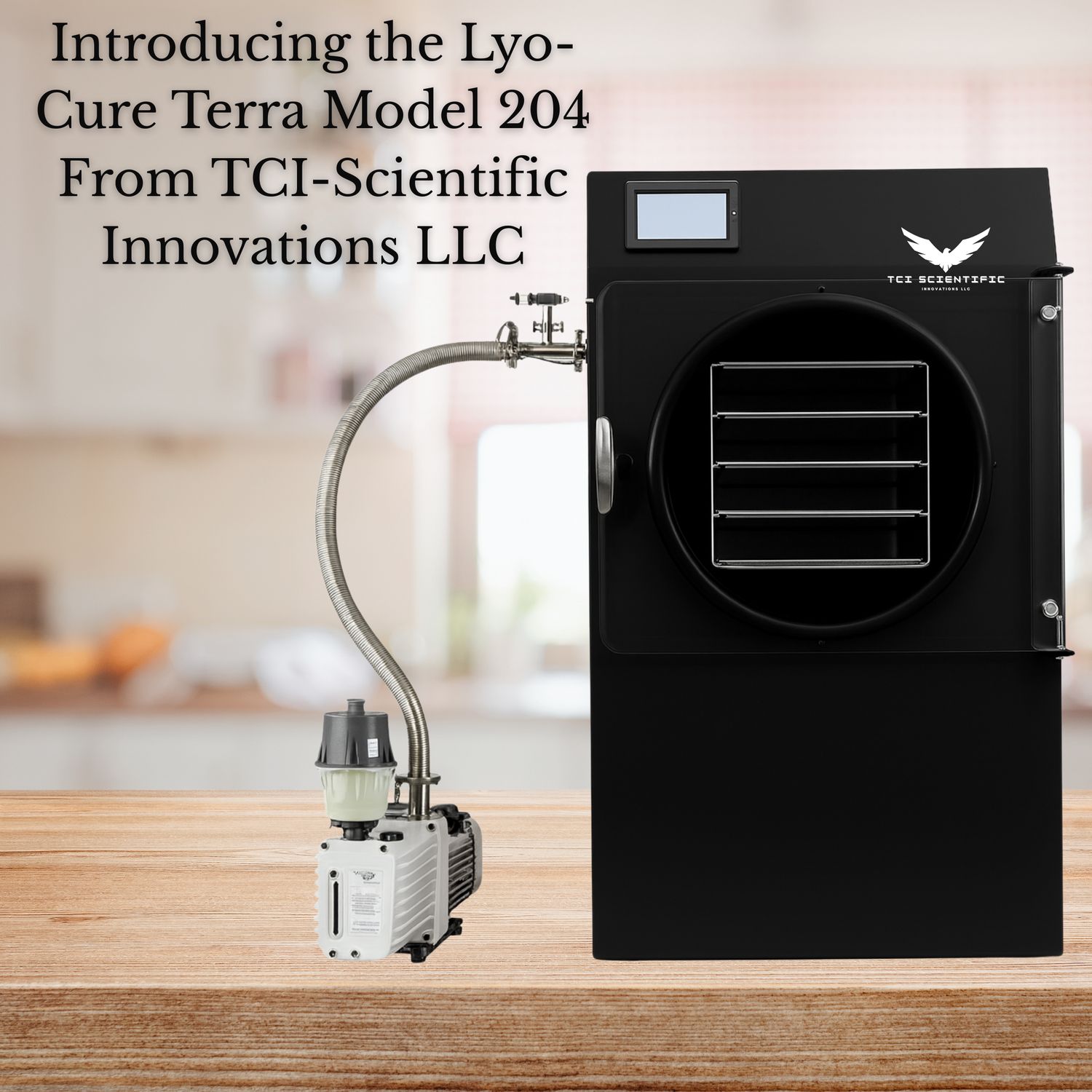

Lyo-Cure™ Terra Model 204

Compact, 4-tray precision freeze dryer for cannabis and food production

The Terra 204 is a purpose-built, four-tray system that delivers lab-grade control in a compact footprint—ideal for cultivators, confectioners, commercial kitchens, pet-food makers, pilot plants, and R&D teams that need reliable, repeatable results without stepping up to Atlas-class capacity. Engineered around Vapor Pressure Control (VPC) and industrial-grade components, Terra 204 shapes the sublimation curve to preserve structure, color, aroma, flavor, and nutrients batch after batch.

Editions & Modes (chosen at purchase)

• Cannabis Edition:

• Recipes (turnkey): three proprietary curves for Dense , Not Dense , and Hash.

• Advanced: up to 10 data points (time / shelf temp / chamber pressure) with VPC for tight holds and gentle ramps.

• Food Edition:

• Automatic (sensor-driven, probe feedback for real-time curve control).

• Candy Mode (presets for common confections; controlled expansion and crunch).

• Manual (fixed setpoints) and Advanced (custom 10-point curve).

Key Features

• Four-Tray System: Optimized spacing for even vapor flow and uniform drying across all racks.

• 7.2 CFM Commercial Vacuum Pump (DRV-10 class): Deep, stable vacuum over long cycles.

• Cold Trap Technology (−40 °F): High-capacity condensation capture that protects product quality and extends pump life.

• Vapor Pressure Control (VPC): Closed-loop pressure management that keeps product below collapse/softening thresholds, shortens cycle time, and maximizes repeatability.

• Compact Footprint: 20" W × 26" D × 31" H ; ~165 lb (cabinet only) fits smoothly into labs and kitchens.

• Industrial Build: Stainless/aluminum chamber, glass-to-metal feedthroughs, modular relay architecture, and KF vacuum hardware for serviceability.

• Professional Design: Blackout front panel and clean lines for a production-ready look.

Why Choose Terra 204?

• True process control: Shape the drying path instead of “hoping” it works—hit target moisture/water activity with confidence.

• Structural integrity: Preserve porosity and texture in delicate fruits, leafy greens, gummies/taffy, meats, and premium flower/hash.

• Consistency at scale: Recipe-driven runs reduce rework and waste; deliver the same quality every batch.

• Dry-on-demand: Freeze inventory now and run cycles to match sales, improving throughput and cash flow.

• Accessible precision: All the science you need, in a footprint and price point that boutique operations can deploy immediately.

Included: Terra 204 cabinet, 4 stainless-steel trays, commercial vacuum pump (7.2 CFM), KF hose/clamps, startup documentation.

Warranty: 2-year Top-To-Bottom Warranty
