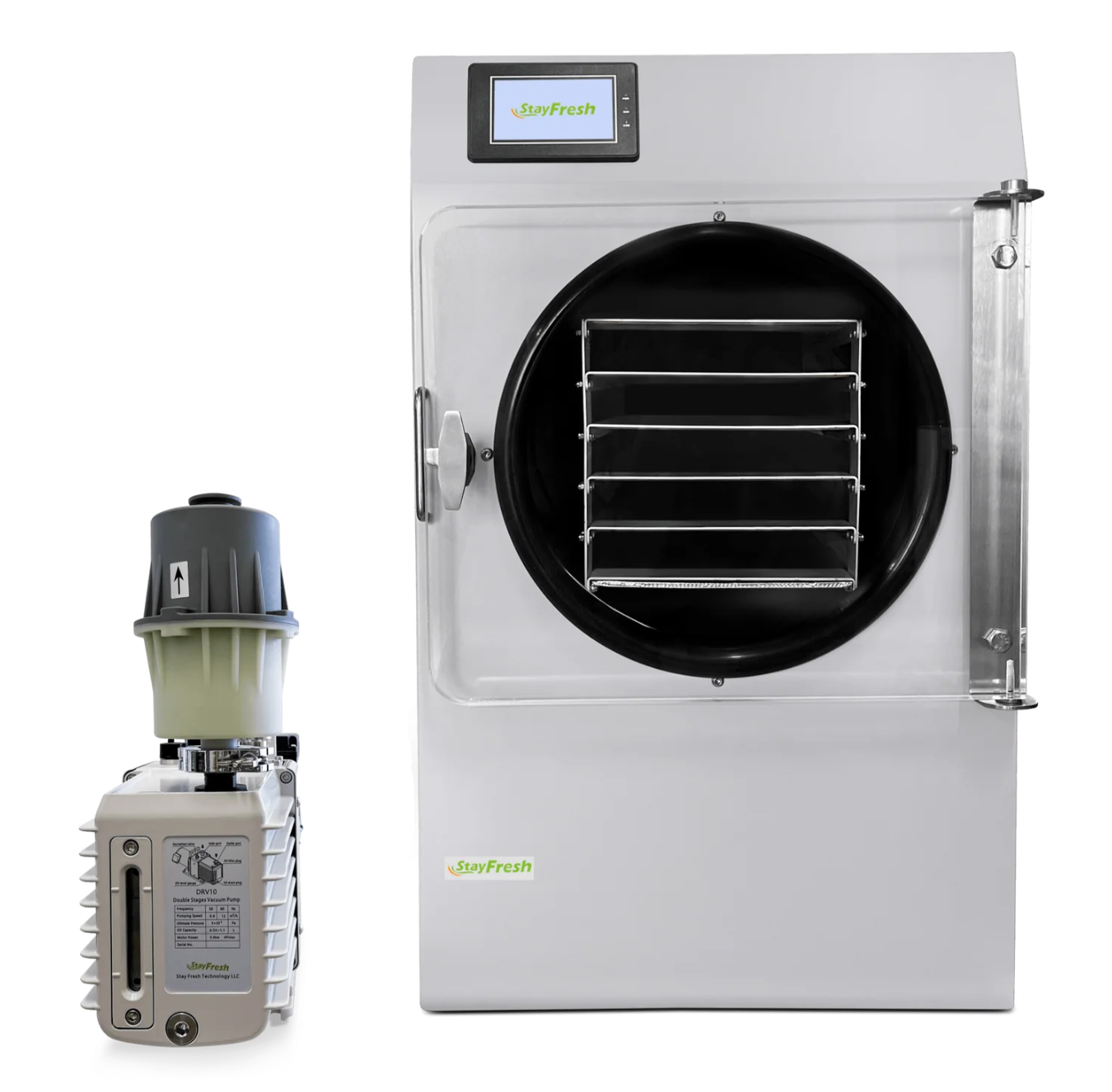

High Output. Compact Design. Fully Featured. Now available exclusively at FreezeDryerShop.com, this 5-tray freeze dryer brings a professional-grade preservation system into your home or small business. Designed for reliability, ease of use, and high-volume processing, this unit is ideal for families, small-scale food producers, candy processors, and preparedness enthusiasts.
With up to 18 lbs. of fresh food per batch
and up to 3,600 lbs. per year, this unit provides impressive throughput in a space-efficient design—built for performance and packed with intelligent features.
🔧 Model Highlights:
800 sq. in. Tray Space
– Process more in every batch with five large trays (8" x 20" x 0.75")
Patented Smart Freeze-Dry Algorithm
– Adapts automatically for consistent results
Multiple Drying Modes
– Simple for beginners, customizable for advanced users
Candy Mode
– Optimized preset for fast, reliable candy processing
RTD Temperature Sensors
– Enhanced monitoring for cycle accuracy
Glass-to-Metal Feedthrough
– Industrial-grade design for longevity and reliability
Replaceable Solid State Relays
– Efficient heating system with long-term serviceability
Stainless Steel Drain Line
– Durable, sanitary, and corrosion-resistant
Independent Vacuum Valve
– Prevents pressure spikes and simplifies maintenance
Motorized Ball Valve
– Protects vacuum pump from oil contamination during repressurization
📊 Specifications:
Ice Capacity:
14 lbs.
Batch Capacity:
12–18 lbs. of fresh food
Drying Time:
16–30 hours (average for 8 lb. load)
Shelf Spacing:
1.6"
Shelf Temp Range:-50°F to 150°F
Dryer Weight:
165 lbs. (pump excluded)
Dryer Dimensions:
20" W x 26" D x 31" H
Cold Trap Temp:-40°F
Vacuum Pump Flow Rate:
7.2 CFM
Vacuum Pump Weight:
55 lbs.
Pump Dimensions:
6.5" W x 20" D x 9" H
Oil Filter Dimensions:
4" x 4" x 6"
⚙️ Power Requirements:
Standard 15A or 20A electrical outlet recommended
Dedicated circuit preferred for optimal performance
📦 What’s Included:
5 Aluminum or Stainless Steel Trays

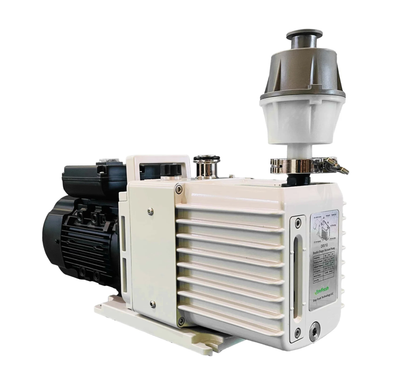

7.2 CFM Industrial Vacuum Pump ($1,295 value)
Oil Filter System
Impulse Sealer

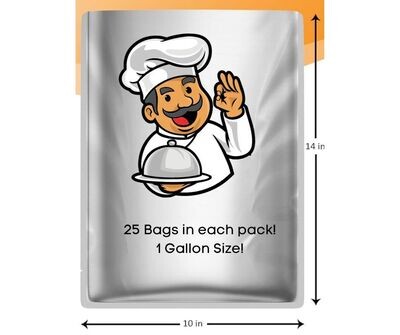

50 Mylar Bags
Power Cord & Manuals
🚚 Shipping Details:
Ships on a pallet in three boxes:
Freeze Dryer: 174 lbs – 25” x 29” x 36”
Vacuum Pump: 60 lbs
Accessories: 10 lbs
Total Shipment Weight:~265 lbs
Pallet Size:
40” x 26” x 41”
Shipping times may vary depending on order volume and destination
Whether you're building food security at home or scaling a small freeze-dried snack operation, this 5-tray powerhouse is built to support serious output with features that streamline every batch. Available only through FreezeDryerShop.com
—your trusted partner in modern preservation.
