Available only at FreezeDryerShop.com, this 5-tray freeze dryer delivers powerful, intelligent performance in a compact footprint—making it a top choice for home users, small business owners, and food preservation enthusiasts looking to process more without overcomplicating their workflow.
With a fresh food capacity of up to 18 lbs per batch
and a total annual output of up to 3,600 lbs, this unit blends commercial performance with everyday usability. Backed by intuitive features, durable construction, and a reliable vacuum system, it’s ready to handle everything from freeze-dried fruits and full meals to candy, pet treats, and more.
🧊 Key Features:
5 Full-Size Trays
– 800 sq. in. of total tray space (tray size: 8” x 20” x 0.75”)
Smart Freeze Algorithm
– Automatically adjusts to food type for ideal results
Beginner & Pro Modes
– Choose from easy presets or full manual control
Candy Mode
– Optimized for sweets and confections
RTD Temperature Sensors
– Improve consistency and drying efficiency
Solid-State Relay System
– Serviceable and built for long-term reliability
Independent Vacuum Valve
– Safely normalizes pressure during vent cycles
Stainless Steel Drain Line
– Sanitary and corrosion-resistant
📊 Specifications:
Batch Capacity:
12–18 lbs. fresh food
Ice Capacity:
14 lbs.
Dry Time:
16–30 hours (varies by load)
Shelf Spacing:
1.6"
Shelf Temp Range:-50°F to 150°F
Dryer Weight:
165 lbs (excluding pump)
Dryer Dimensions:
20” W x 26” D x 31” H
Cold Trap Temp:-40°F

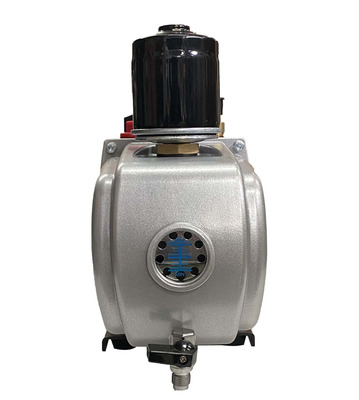

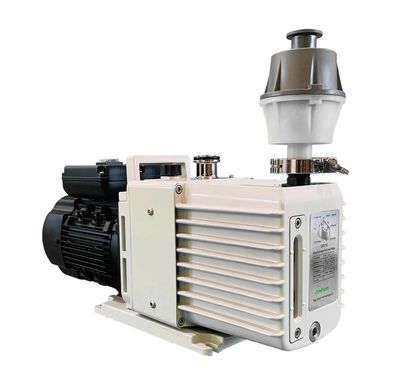

🔧 Standard Vacuum Pump:
Flow Rate:
7.2 CFM
Weight:
55 lbs
Dimensions:
6.5” W x 20” D x 9” H
Includes Oil Filter System
📦 Included Accessories:

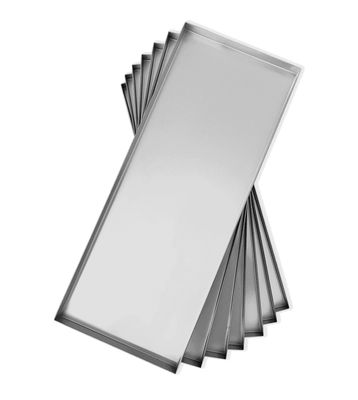

5 Durable Trays (Aluminum or Stainless Steel)
Industrial-Grade Vacuum Pump
Impulse Heat Sealer

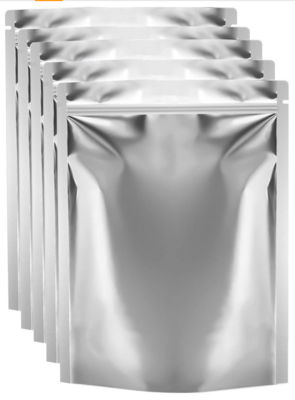

50 Mylar Bags
Power Cable & User Manual
Oil Filter System
⚡ Installation Requirements:
Standard 15A or 20A dedicated electrical outlet recommended
No special wiring or breaker installation needed
🚚 Shipping Details:
Ships in 3 boxes on a pallet
Freeze Dryer Box: 174 lbs – 25” x 29” x 36”
Vacuum Pump Box: 60 lbs
Accessory Box: 10 lbs
Total Shipping Weight:~265 lbs
Pallet Size:
40” x 26” x 41”
Whether you’re preserving garden harvests, preparing long-term food storage, or launching a freeze-dried treat brand, this 5-tray system offers an unbeatable balance of output, intelligence, and affordability—available now only at FreezeDryerShop.com.
